PM Series Peripheral Pump PM45

FOB Reference Price:Get Latest Price
US $11-25 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
PM45
Theory:
Vortex Pump
Structure:
Multistage Pump
Usage:
Water
Power:
Electric, 0.5 HP
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Middle
Application:
Water Supply
Pump body:
Cast Iron
Frequency:
50Hz/60HZ
Wire:
Aluminum/Copper
20ft Container:
3400pcs
Flow:
50l/min
Head:
50m
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton,Wooden Pallet or According To Customers Request
Port
Fuzhou
Lead Time :
20 days after confimring order

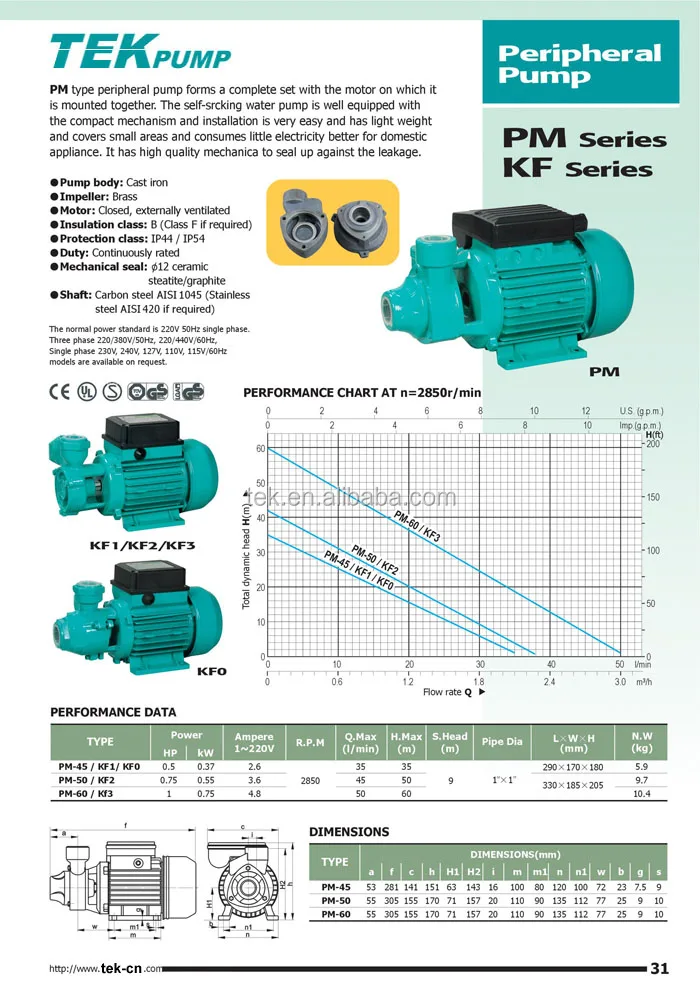

PM Series Peripheral Pump PM45



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year
Product Power:0.37-0.75kw
-- View technical --



Model

Power

Q.Max

H.Max

S.Max

Pipe Dia

LXWXH

N.W

Ampere

Speed

kW

HP

L/min

m

m

inch

mm

kg

1~220

rpm

PM-35

0.37

0.5

35

35

9

1"x1"

290X170X180

5.9

1.6

2850

PM-40

0.55

0.75

40

40

9

1"x1"

330X185X205

9.7

3.6

2850

PM-50

0.75

1

50

50

9

1(1/2)"x1(1/2)"

330X185X205

10.4

4.8

2850

PM-60

1.1

1.5

60

60

9

1(1/2)"x1(1/2)"

425X220X255

17.2

6.2

2850
