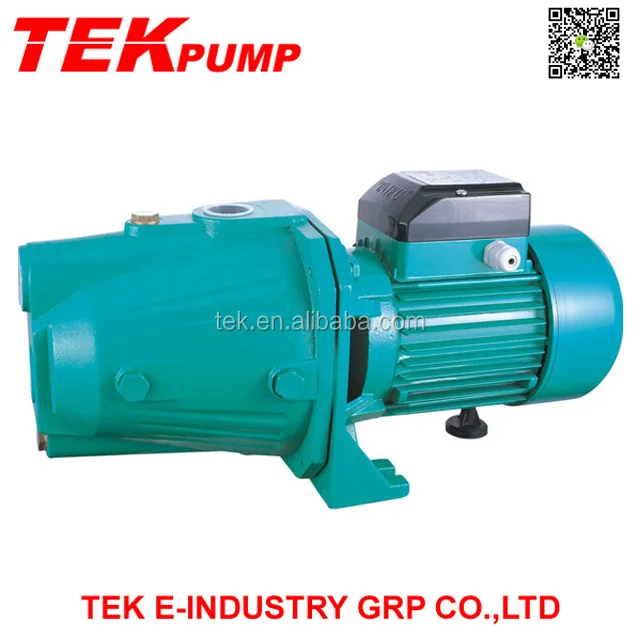

Self Priming Jet Pump JET100L

FOB Reference Price:Get Latest Price
US $30-50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
JET100L
Structure:
Multistage Pump
Usage:
Water
Application:
Water Supply
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
Material:
Cast Iron
Frequency:
50Hz/60HZ
Brand name:
TEK
Certificate:
CE,CCC,ISO9001
Standard or Nonstandard:
Standard
Theory:
Centrifugal pump
Supply Ability
Supply Ability:
10000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Wooden Pallet Or According To Customers Request
Port
FOB Fuzhou
Lead Time :
20 days after recieving payment

Self Priming Jet Pump JET100L



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: Class B (Class F)
PROTECTION: protection: IP 44



Model

Power

Q.Max

H.Max

S.Max

Pipe Dia.

Packing Dim.

G.W

 Qty/20ft

KW

HP

L/min

m

m

mm

mm

kg

pcs

JET40L

0.33

0.45

40

35

9

25x25

420x180x205

12.5

1900

JET60L

0.37

0.5

45

38

9

25x25

420x180x205

14.1

1900

JET80L

0.55

0.75

50

45

9

25x25

420x210x260

15.2

1700

JET100L

0.75

1

60

48

9

25x25

420x210x260

16.0

1600
