PB Mini Circulation Pump PB15-85

FOB Reference Price:Get Latest Price
US $25-67 / Pieces | 10 Piece/Pieces TRIAL ORDER (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
PB15-85
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric, 90 w
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Low Pressure
Application:
Water Supply
Certificate:
CE,CCC,ISO9001
MOQ:
10
Frequence:
50HZ
Protection class:
IP54
Insulation class:
F
Pump body:
Cast Iron
Shaft:
Stainless steel
Flow Rate:
35 l\min
max head:
8 m
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton,Wooden Pallet or According To Customers Request
Port
Fuzhou Port
Lead Time :
Shipped in 20 days after payment

PB Mini Circulation Pump PB15-85



Suitable fluids
Heating water to VDI2035
Water/glycol mixtures max.Mixing ratio1:1
Hydraulic corrections required for mixing ratio above20%
Performance
Single-speed Automatic switch
Fluid temperature range -10C ~ +110C
Max.Working pressure 10bar
Ambient Temperature
Permissible up to 40C
Power
Mains power 1~230v, 50Hz
Motor
Degree of protection IP54
Insulation class F
Construction Materials
Pump body cast iron
Impeller GF-PP
Shaft stainless steel
Bearings graphite

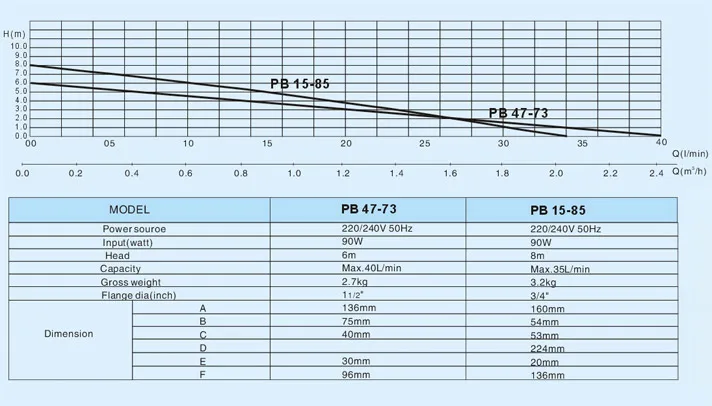

Model

Input

Capacity

Head

Flange

G.W

Dimesion

Power Source

w

L/min

m

inch

(kg)

mm

PB 47-73

90

40

6

1 1/2"

2.7

126*115*136

220/240V 50Hz

PB 15-85

90

35

8

3/4"

3.2

156*107*224

220/240V 50Hz

PB 25-57

90

35

3.5

1"

2.8

221*156*253

220/240V 50Hz

PB 32-57

110

40

3

1 1/4"

3

152*102*196

220/240V 50Hz

PB 40-72

200

120

5.5

1 1/2"

9.5

152*102*196

220/240V 50Hz
