Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TEK
  • Model Number: TW-1500
  • Theory: Centrifugal pump
  • Structure: Single-stage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: Low Pressure
  • Application: Water
  • Material: fiberglass reinforced technopolymer
  • Frequency: 50Hz/60HZ
  • Color: Yellow
  • Certificate: ISO9001
  • Feature: Eco-Friendly
  • Warranty: 1 Year
  • Motor: DC Brushless Motor
  • Coil wire: Copper
  • Voltage: 220v/50hz...)
  • Impeller: PPO

Packaging & Delivery

Packaging Details Wooden Pallet
Delivery Time Shipped in 20 days after payment

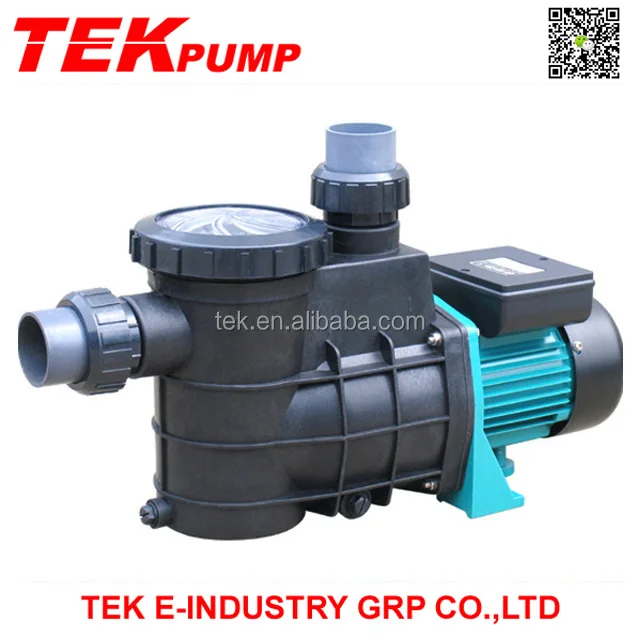

TW-1500 1.5kw Horizontal Solar Swimming pool Pump


PUMP BODY:
Made from fiberglass reinforced technopolymer, with UIN ISO 228/1 gas threaded suction and delivery openings.
PUMP BODY COVER:aluminium, serving also as mechanical seal horsing.
EJECTOR UNION: plastic PPO (approved for drinking water)
IMPELLER: . plastic PPO
MOTOR SHAFT: AISI 314 stainless steel.
MECHANICAL SEAL: ceramic and graphite.
MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction motor of suitable size, which is quiet, closed and externally ventilated, suitable for continuous duty. The thermal cutout replay (motor protector ) is incorporated in all single phase motors. Three phase motors require an adequate external motor protector, with connections according to current standards.
INSULATIONclass B (Class F)
PROTECTION: IP 44.
WARRANTY1 year.
Product Power: 0.75-2.2kw



Model

Power

Flow

Head

Pipe Dia.

L×W×H

G.W/N.W

Kw

HP

L/min

m

mm

(mm)

(kg)

TW-280

0.28

0.37

130

8.5

Φ32mm

420×180×245

5.2

TW-370

0.37

0.5

180

9

Φ50mm

420×180×245

8.1

TW-550

0.55

0.75

215

10

Φ50mm

559×240×315

9.0

TW-750

0.75

1

240

11

Φ50mm

559×240×315

9.0

TW-1100

1.1

1.5

460

18

Φ63/Φ60

610×275×335

17.7/17.5

TW-1500

1.5

2

530

17

Φ63/Φ60

610×275×335

19.6/17.9

TW-2200

2.2

3

585

20

Φ63/Φ60

610×275×335

21.7/19.5

TW-2600

2.6

3.5

650

20

Φ63/Φ60

610×275×335

23.1/21.7
