Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TEK
  • Model Number: QB-90
  • Theory: Vortex Pump
  • Structure: Single-stage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electric
  • Pressure: middle
  • Application: pumping water
  • Color: Green,red...
  • Certificate: CE,ISO
  • Voltage: 220v/50hz...)
  • Warranty: 12 Months

Packaging & Delivery

Packaging Details normal package or according to your request
Delivery Time Shipped in 20 days after payment

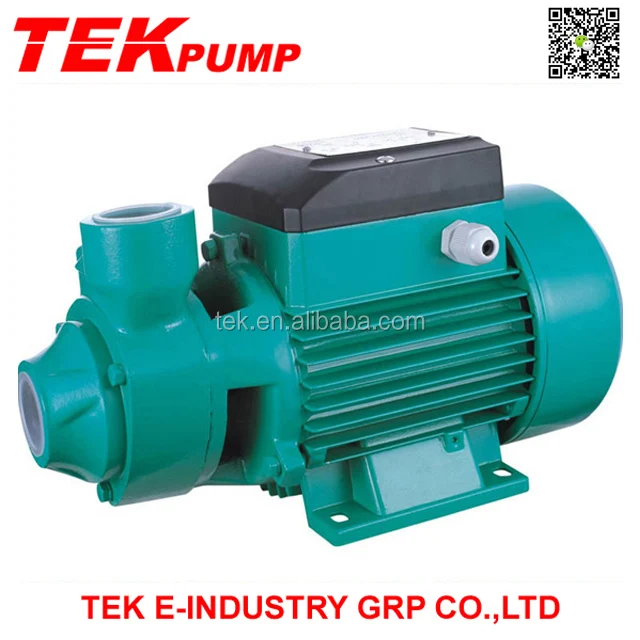

QB series vortex pump

Rated output: 0.33~0.75 kw WARRANTY: 1 year
2.High:35-55 m
3.Suction:9 m
4.Speed:2850rpm



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year



Model

Power

Q.Max

H.Max

S.Max

Pipe Dia

Packing Dim.

N.W

Qty/20ft

Speed

Ampere

kw

hp

L/min

m

m

mm

mm

kg

pcs

rpm

1~220

QB-60/PK-60

0.37

0.5

35

35

9

25x25

280x150x180

5.8

3800

2850

1.6

QB-70/PK-70

0.55

0.75

40

40

9

25x25

310x180x200

9.7

2800

2850

3.6

QB-80/PK-80

0.75

1

50

50

9

40x40

310x180x200

10.5

2800

2850

4.8

QB-90/PK-90

1.1

1.5

60

60

9

40x40

415x195x220

17

1650

2850

6.2
