COOL TYPE!!! DB750 Peripheral Pump

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
DB-750A
Theory:
Vortex Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric, 0.75KW
Standard or Nonstandard:
Standard
Fuel:
ELECTRIC
Pressure:
Low Pressure
Application:
Water
Color:
Blue
Certificate:
CE,ISO
Frame No.:
70#
Stator long:
60mm
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Normal package or according to customer's request
Port
Fuzhou port
Lead Time :
Shipped in 20 days after payment

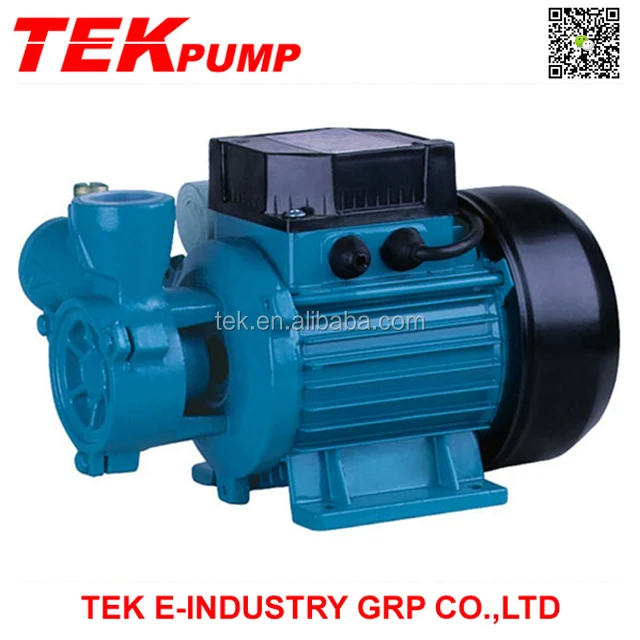

COOL TYPE!!! DB750 Peripheral Pump



Application

DB serie clean water pump are efficient electric pump which can be used in many  ways.

Domestic family water supply,plants watering in farmland or chards,flower gardens,supply water for village,mines,also a ideal equipment in supplying water for high buildings.

CONSTRUCTION:
Pump-Peripheral
Pump Body:Cast Iron
Front Cover:Cast Iron
Impeller:Brass
Mechanical Seal:Carbon/Ceramic/Stainless Steel
MOTOR-Toptek Electrical Motor
Motor Housing:Alloy Aluminium
Shaft:Carbon Steel
Insulation:Class B
Protection:IP44
Cooling:External Ventilation


AVAILABLE ON REQUEST:
·Higher Head or Big Capacity
·pump body or front cover
·Pump Shaft
·Special Mechanical Seal
·Protection IP55
·Other Voltage or Frequency 60HZ



Model

Power

Q.Max

H.Max

Suct.Max

Speed

Inlet/Outlet

L×W×H

N.W

HP

KW

(l/min)

 (m)

(m)

(r/min)

Inch

(mm)

(kg)

DB-107

0.2

0.13

30

25

9

2850

1"X1"

280X160X180

4.8

DB-125

0.2

0.13

30

25

1"X1"

280X160X180

4.8

DB-330

0.5

0.37

35

35

1"X1"

280X160X180

5.2

DB-550

0.75

0.55

45

50

1"X1"

310X170X220

9

DB-750

1

0.75

50

60

1"X1"

310X170X220

10
