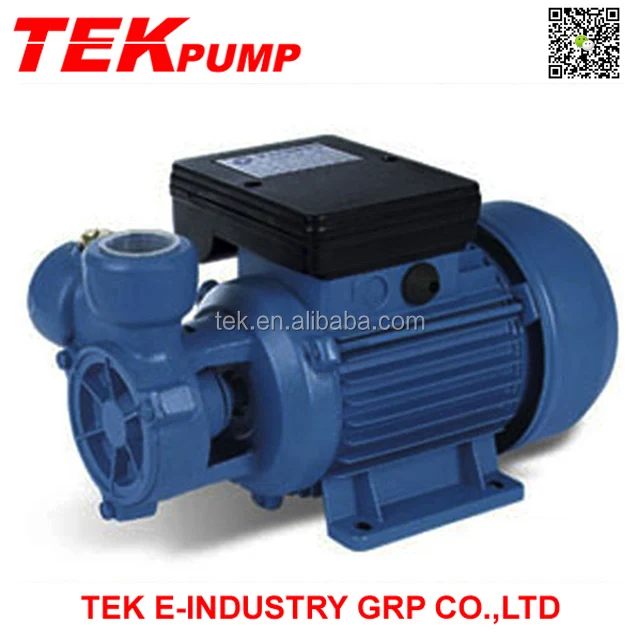

DB-330A Vortex Pump

FOB Reference Price:Get Latest Price
US $14-23.9 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
DB-330A
Theory:
Vortex Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric, 0.5kw
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Middle
Application:
Clean water
Brand name:
TEK
certificate:
CE,CCC,ISO9001
Wire:
Copper wire
Material:
Cast Iron
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton,wooden pallet or according to customers request
Port
Fuzhou Port
Lead Time :
20 days after recieving payment

DB-330A Vortex Pump



Pump-Peripheral
Pump Body:Cast Iron
Front Cover:Cast Iron
Impeller:Brass
Mechanical Seal:Carbon/Ceramic/Stainless Steel
MOTOR-Toptek Electrical Motor
Motor Housing:Alloy Aluminium
Shaft:Carbon Steel
Insulation:Class B
Protection:IP44
Cooling:External Ventilation



Model

Power

Q.Max

H.Max

Suct.Max

Speed

Inlet/Outlet

L×W×H

N.W

HP

KW

(l/min)

(m)

(m)

(r/min)

Inch

(mm)

(kg)

DB-107

0.2

0.13

30

25

9

2850

1"X1"

280X160X180

4.8

DB-125

0.2

0.13

30

25

1"X1"

280X160X180

4.8

DB-330

0.5

0.37

35

35

1"X1"

280X160X180

5.2

DB-550

0.75

0.55

45

50

1"X1"

310X170X220

9

DB-750

1

0.75

50

60

1"X1"

310X170X220

10
