Self-priming Centrifugal Pump JET80S

FOB Reference Price:Get Latest Price
US $29-50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
JET80S
Theory:
Self-Priming Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
High Pressure
Application:
Clean Water
ferquency:
50Hz/60Hz
brand name:
TEK
certificate:
CE,CCC,ISO9001
Material:
Plastic
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton wooden pallet or according to customers request
Port
Fuzhou Port
Lead Time :
20 days after recieving payment

Self-priming Centrifugal Pump JET80S



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: Class B (Class F)
PROTECTION: protection: IP 44

Product Power: 0.55KW



Model

Power

Q.Max

H.Max

S.Max

Pipe Dia.

Packing Dim.

G.W

 Qty/20ft

KW

HP

L/min

m

m

mm

mm

kg

pcs

JET40S

0.33

0.45

40

35

9

25x25

420x180x205

10.2

1500

JET60S

0.37

0.5

45

38

9

25x25

420x180x205

13.0

1500

JET80S

0.55

0.75

50

45

9

25x25

420x210x260

13.5

1400

JET100S

0.75

1

60

48

9

25x25

420x210x260

14.1

1400

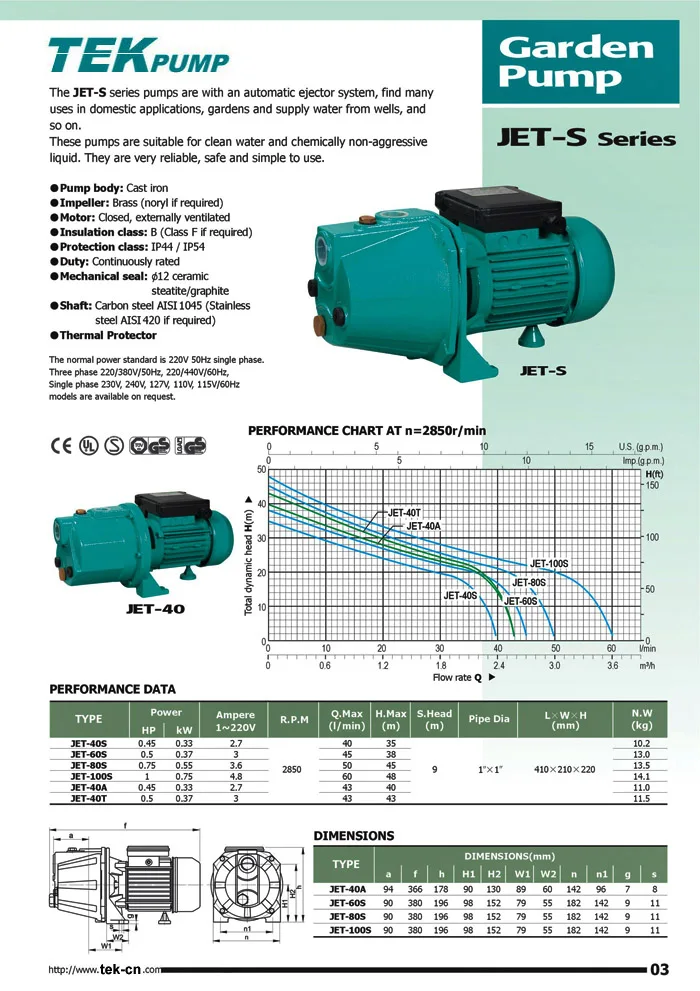

JETS 43.jpg

JETS data.jpg
