Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TEK
  • Model Number: FCP-250
  • Ferquency: 50Hz
  • Material: Plastic
  • Certificate: CE,CCC,ISO9002
  • Power: 0.25kw
  • Voltage: 220V
  • Phase: single-phase
  • H.Max: 8m
  • Q.Max: 170l\min
  • Protection: IP44
  • Insulation: Class B

Packaging & Delivery

Packaging Details carton wooden pallet and standard export carton
Delivery Time 20 days after recieving payment and confirming order

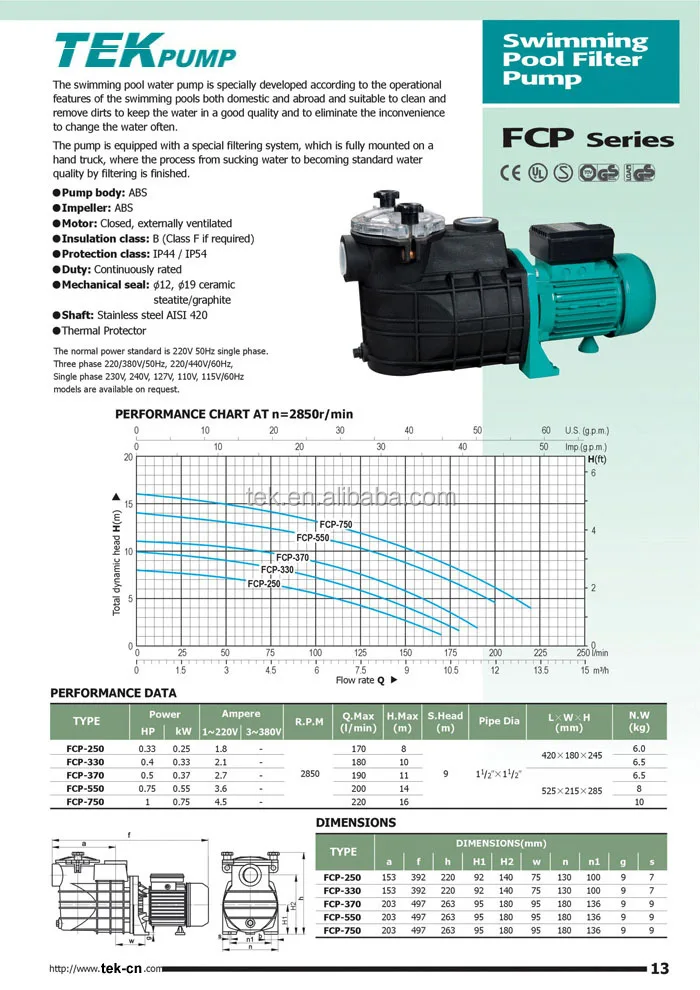

Ac swimming pool pump FCP-250



PUMP BODY,
Made from fiberglass reinforced technopolymer, with UIN ISO 228/1 gas threaded suction and delivery openings.
PUMP BODY COVER, aluminium, serving also as mechanical seal horsing.
IMPELLER . plastic PPO
MOTOR SHAFT, AISI 314 stainless steel,
MECHANICAL SEAL,ceramic and graphite,
MOTOR
The pumps are coupled to an asynchronous, high efficiency TEK induction motor of suitable size, which is quiet, closed and externally ventilated, suitable for continuous duty. The thermal cutout replay (motor protector ) is incorporated in all single phase motors. Three phase motors require an adequate external motor protector, with connections according to current standards.
INSULATION,Class B (Class F)
PROTECTION, IP 44.
Product Power, 0.25KW



Model

Power

Ampere

Q.Max

H.Max

S.Head

Speed

Pipe Dia

L×W×H

N.W

kW

HP

1~220V

3~380V

(l/min)

(m)

(m)

R.P.M

(mm)

(mm)

(kg)

FCP-250

0.25

0.33

1.8

-

170

8

9

2850

40×40

420×180×245

6

FCP-330

0.33

0.4

2.1

-

180

10

9

2850

40×40

420×180×245

6.5

FCP-370

0.37

0.5

2.7

-

190

11

9

2850

40×40

525×215×285

6.5

FCP-550

0.55

0.75

3.6

-

200

14

9

2850

40×40

525×215×285

8

FCP-750

0.75

1

4.5

-

220

16

9

2850

40×40

525×215×285

10

FCP-1100

1.1

1.5

7.5

2.7

300

17

9

2850

50×40

590×225×290

16

FCP-1500

1.5

2

9.6

3.5

430

18

9

2850

50×50

590×225×290

18

FCP-2200

2.2

3

13.5

5

500

20

9

2850

50×50

610×225×290

21



Installation Dimension



Model

DIMENSION(mm)

a

f

h

H1

H2

w

n

n1

g

s

FCP-250

153

392

220

92

140

75

130

100

9

7

FCP-330

153

392

220

92

140

75

130

100

9

7

FCP-370

203

497

263

95

180

95

180

136

9

9

FCP-550

203

497

263

95

180

95

180

136

9

9

FCP-750

203

497

263

95

180

95

180

136

9

9

FCP-1100

220

560

306

122

215

95

215

150

10

16

FCP-1500

220

560

306

122

215

95

215

150

10

16

FCP-2200

220

600

306

122

215

95

215

150

10

16
