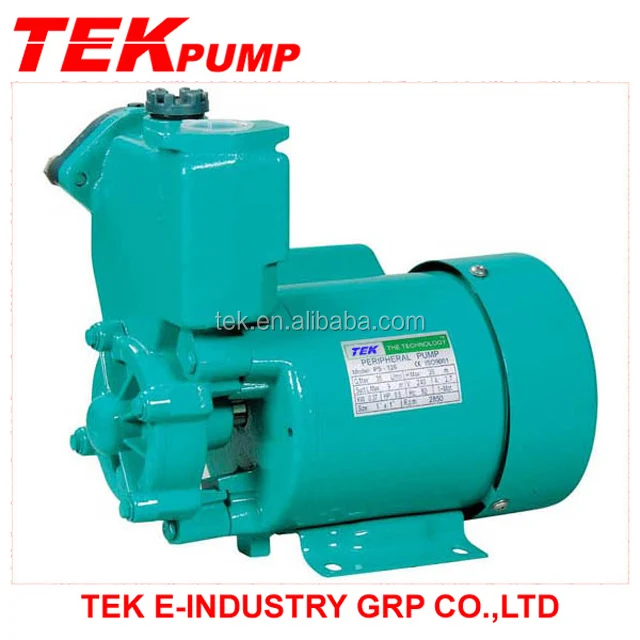

Self-spring Periheral Pump PS-126

FOB Reference Price:Get Latest Price
US $15-25 / Pieces | 1 Piece/Pieces trial order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
PS-126
Theory:
Self-priming Peripheral Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric, 0.25kw
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Middle
Application:
Clean Water
Ferquency:
50Hz/60Hz
Voltage:
220V
Certificate:
CE,CCC,ISO9002
S.Max:
9m
Q.Max:
35l\min
H.Max:
40m
Color:
green or others
Speed:
2850RPM
Protection:
IP44
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Wooden pallet Or According To Customers Request
Port
FUZHOU Port
Lead Time :
20 days

Self-priming Peripheral Pump ps-126



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year



Model

Power

Q.Max

H.Max

S.Max

Pipe Dia

Packing Dim.

GW

 Qty/20ft

Speed

kw

hp

L/min

m

m

mm

mm

kg

pcs

(r.p.m)

PS-126

0.25

0.32

35

40

9

25x25

260x170x260

6.9

2650

2850

PS-130AUTO

0.25

0.32

35

40

9

25x25

310x230x290

6.9

1500

2850
