TPS60 Self-priming Peripheral Pumps

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces trial order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
TPS60
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric, 0.37kw
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Low Pressure
Application:
Water
Certifate:
CE,ISO
Color:
blue,green,black
Material:
Aluminums,copper
Warranty:
12 Months
Certificate:
CE Certificate
Motor:
100% Copper Wire
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard export package or according to customers request
Port
Fuzhou
Lead Time :
Shipped in 20 days after payment
TPS60 Self-priming Peripheral Pumps


With peripheral impeller containing numerous radial blades in its edge, self-priming because of the particular design of the pump body which is with a small tank, water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generating high pressure. These pumps have a compact size and are very economical, finding the most different operating requirements such as: supply water from well, pool an so on, increase the water pressure in the pipe, garden sprinkling or clean washing.
Pumps should be installed in a covered area, protected against the weather.

Operating Limitation
Max ambient temperature up to 40°C
Max fluid temperature up to 80°C
Max pressure up to 10 bar

Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon



Model

Power

Q.Max

H.Max

S.Max

Pipe Dia

Packing Dim.

N.W

 Qty/20ft

Speed

Ampere

kw

hp

(l/min)

(m)

(m)

(mm)

(mm)

(kg)

pcs

(r.p.m)

1~220

TPS-60

0.37

0.5

35

35

9

25x25

260x165x215

6.3

2550

2850

1.8

TPS-70

0.55

0.75

50

50

9

25x25

285x195x240

8.1

1850

2850

2.6

TPS-80

0.75

1

55

55

9

25x25

285x195x240

9

1850

2850

3.6

TPS-90

1.1

1.5

85

70

9

40x40

350x260x270

11

1200

2850

4.2

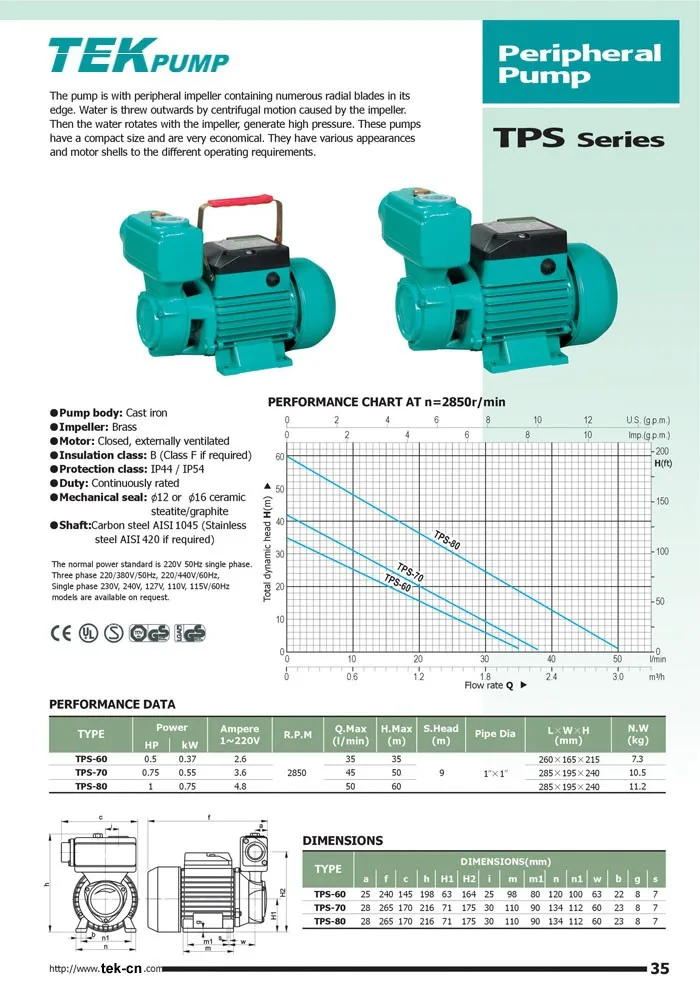

TPS 3 1.jpg TPS data.jpg
